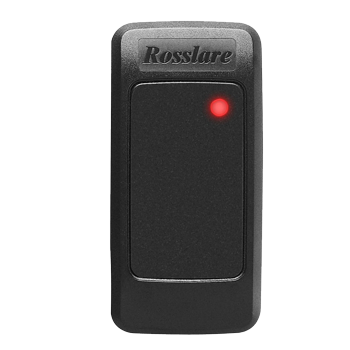

AY-K12

Rosslare's Ay-k12 Is A Powerful Rfid Proximity Card Reader Of 125 Khz Cards And Tags, Featuring Wiegand 26-bit Output Format And A Read Range Of Up To 80 Mm (3.15 In.).

With A Miniature, Sleek Design And A Tough, Uv And Water-resistant Casing, The Ay-k12 Is Equally Suited To Indoor And Outdoor Use, And Is Both Economical And Reliable.

The Ay-k12 Is Certified For Compliance With All Leading International Safety And Access Control Standards.

Features

  • Operating Voltage Range :- 5–16 VDC, from a regulated power supply
  • Input Current :- Standby: 35 mA at 12 VDC
    Maximum: 50 mA at 12 VDC
  • LED Control :- Dry Contact, N.O.
  • Proximity :- Maximum read range*: 80 mm (3.15 in.)
    Modulation: ASK at 125 kHz
    Compatible cards: All 26-bit EM cards
    * Measured using Rosslare Prox Card AT-R14 or equivalent. Range also depends on electrical environment and proximity to metal
  • Tamper :- Optical back tamper sensor, O.C. active low 16 mA max sink current.
  • Output Format :- Wiegand 26-Bit.
  • Visual :- Bi-color LED indicator.
  • Design :- Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Suitable for harsh environments.
  • Operating Environment :- Water resistant, suitable for outdoor use (IP65 rated).
  • Operating Temperature :- -31˚C to 63˚C (-25˚F to 145˚F).
  • Operating Humidity :- 0 to 95% (non-condensing).
  • RFI Protection :- > 20 V/m up to 1000 MHz
  • Dimensions :- 80 x 40 x 12.8 mm (3.1 x 1.6 x 0.5 in.)
  • Weight :- 70.5 g (0.155 lbs)
