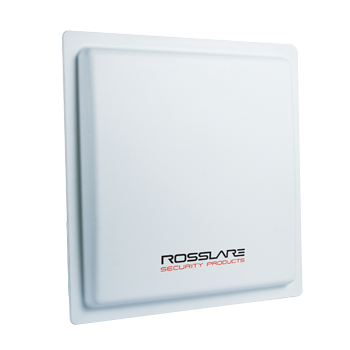

AY-U900

The AY-U900 Is An Rfid Long-range Proximity Card Reader That Is Compatible With Multiple Protocols And Can Read Multiple Tag Formats. The Reader Is Waterproof And Is Suitable For Use In A Wide Range Of Rfid Applications, Such As Transport Management, Vehicle Management, Car Parking, Production Process Control, And Access Control.

Features

  • Operating Voltage Range :– 9 to 12 VDC (2 A)
  • Input Current :– Standby: 0.2 A max, Read: 1.2 A max
  • Card Read Distance :– Up to 12 m (39.4 ft) (adjustable)
    * Read range was tested with Rosslare’s AT-T910 card
  • Transmission Protocol :– Wiegand 26-Bit (Custom: Wiegand 34-Bit)
  • Maximum Cable Distance :– 150 m (500 ft)
  • Frequency :– AY-U900US: 902–928 MHz (America)
    AY-U900C: 920–925 MHz (China)
    AY-U900EU: 865–868 MHz (Europe)
  • Read Sensitivity :– Dual polarization read mode
  • Cards and Tags :– Rosslare’s AT-T910 and AT-T911
    ISO18000-6B Tags
    EPC GEN2 (ISO18000-6C) Tags
  • Operating Environment :– -20°C to 80°C (-4°F to 176°F)
  • Operating Temperature :– -40°C to 125°C (-40°F to 257°F)
  • Operating Humidity :– 0 to 95% (non-condensing)
    Suitable for outdoor use (IP54)
  • Dimensions :– 44.5 x 44.5 x 6.7 cm (17.52 x 17.52 x 2.64 in.)
  • Weight :– 2.32 kg (5.11 lb)
